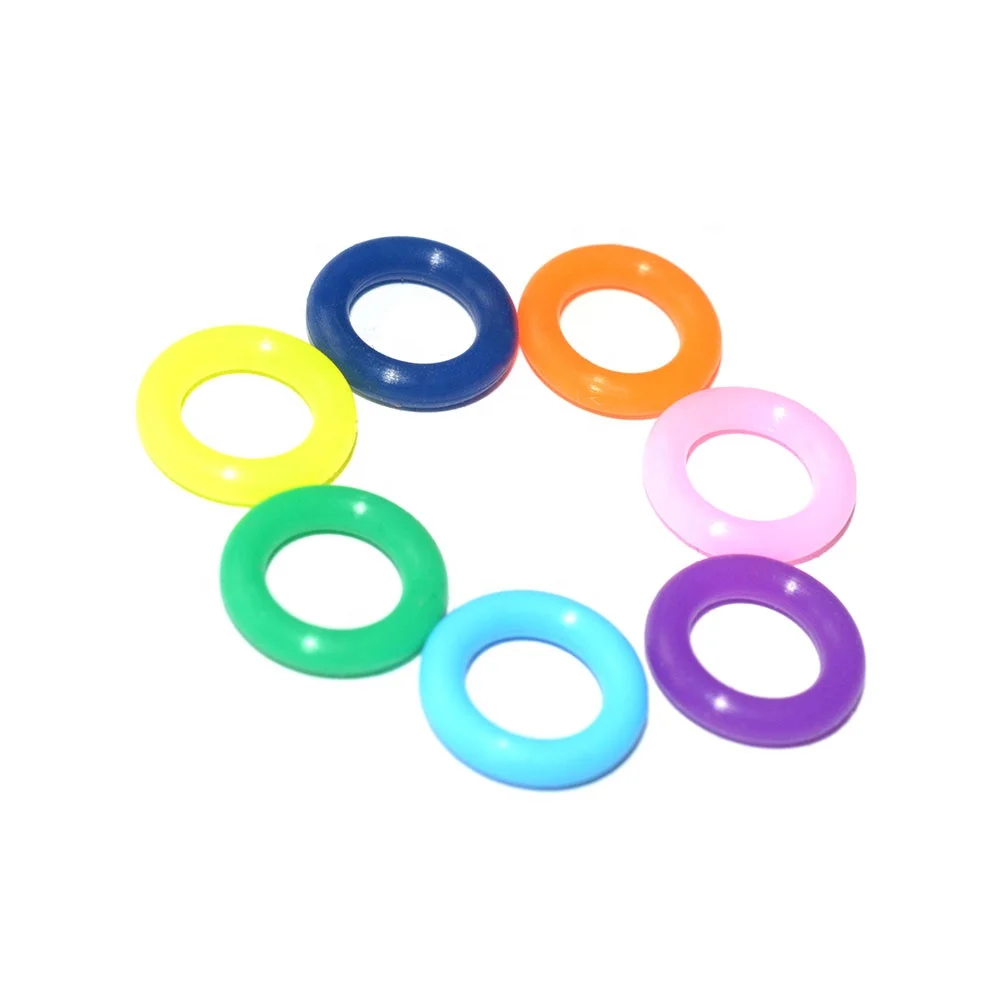

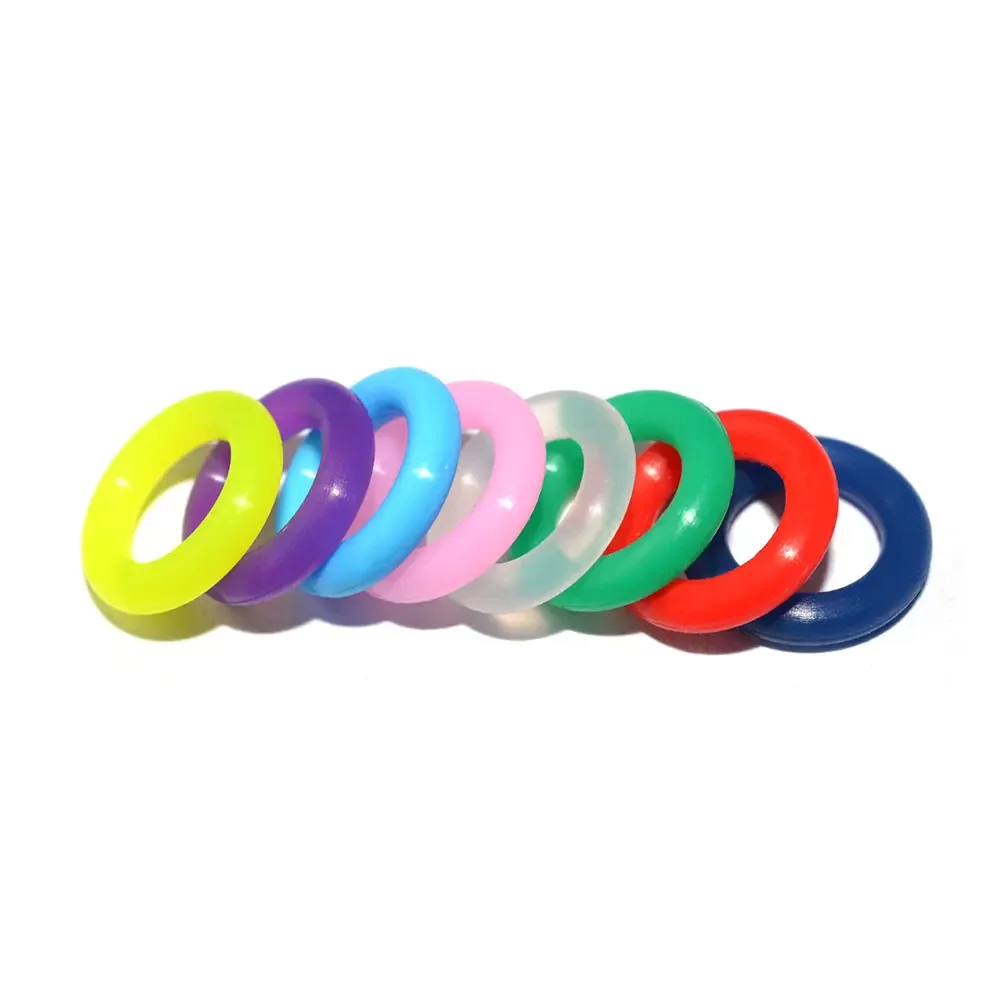

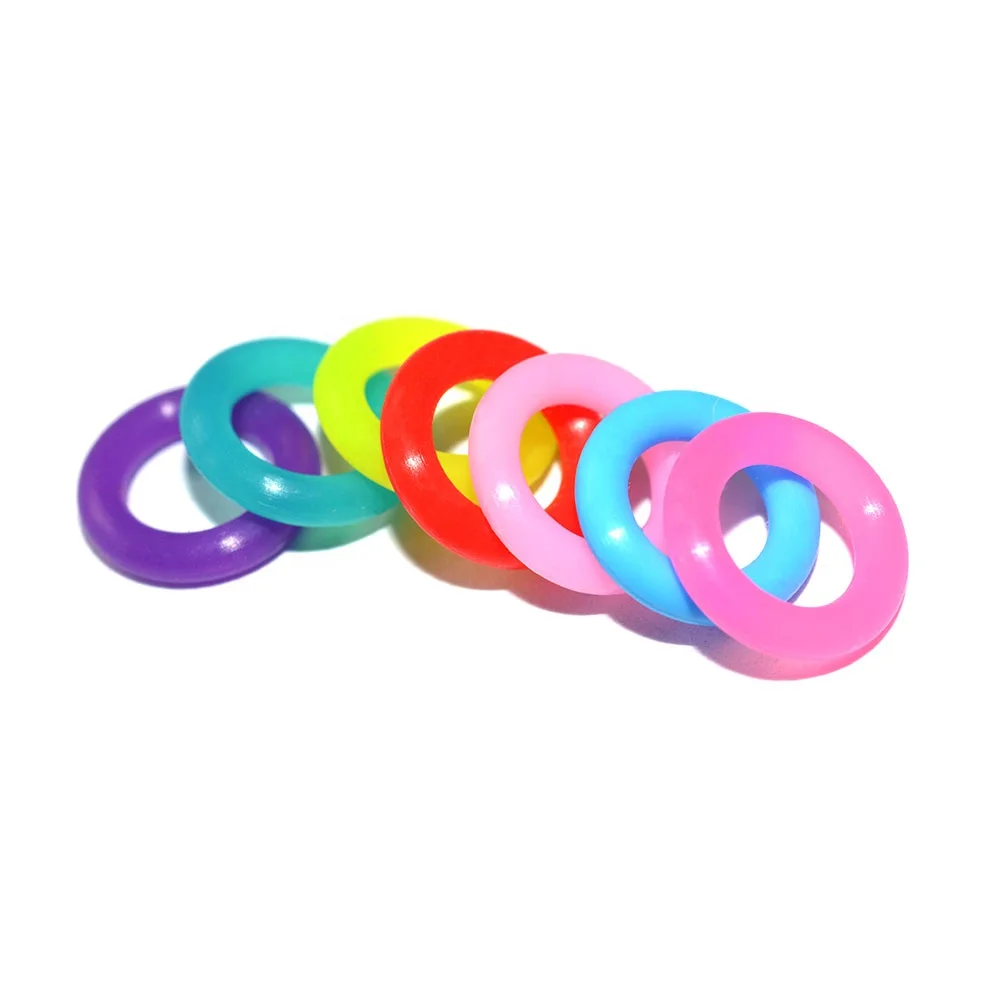

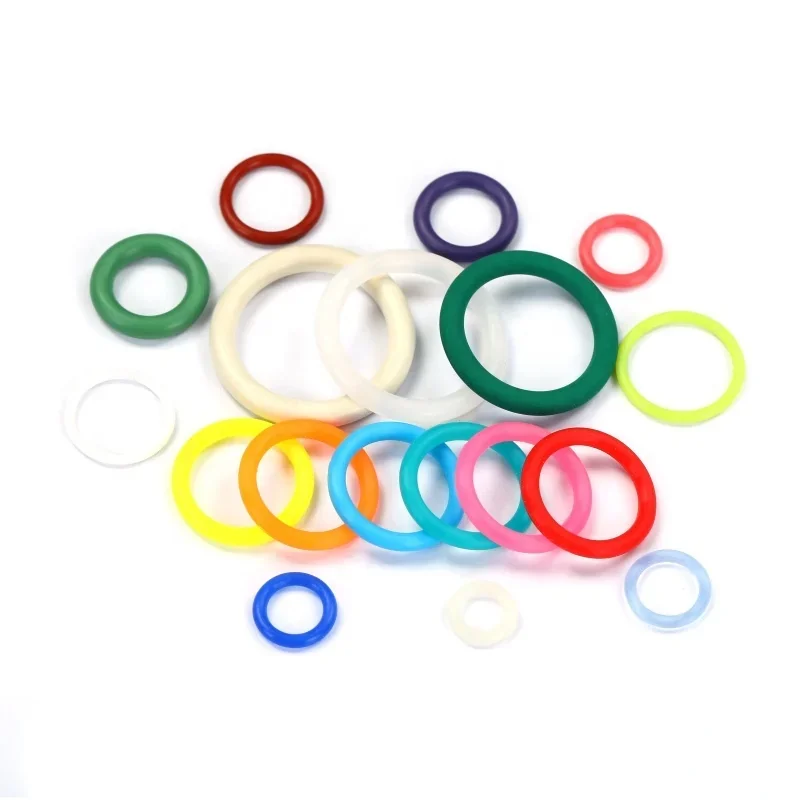

Name: Temperature Silicone O-rings Cs3 mm Rubber Ring for Glasses Chain
Availability: InStock
Rating: 4.5 (89 reviews)

Temperature Silicone O-rings Cs3 mm Rubber Ring for Glasses Chain

Banner PDF Get A Quote

Home
Products
Standard Rubber Products
O RING
Temperature Silicone O-rings Cs3 mm Rubber Ring for Glasses Chain

Temperature Silicone O-rings Cs3 mm Rubber Ring for Glasses Chain

Key attributes

size

standard and custom

model number

AS568

place of origin

Hebei, China

Brand Name

Beike silicone rubber ring

Product

temperature silicone o-rings cs3 mm rubber ring for glasses chain

Size

AS568 Or custom

Material

silicone, SIL, VMQ

Duro

30-80 Shore A

Color

Black,White,Brown,etc

Sample

free sample

Shipping

1.Small quantity,DHL/TNT/EMS 2.Large quantity ,sea/air freight

Packing

pp bag inside,carton box outside

Application

for tubes

Certificate

ISO9001:2008

Packaging and delivery

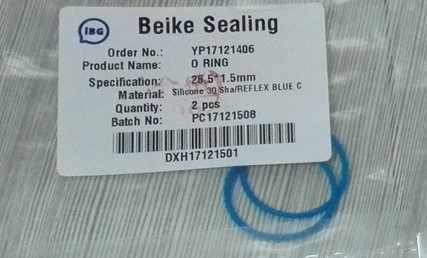

Packaging Details

silicone o ring packing:pp bag inside, carton box outside , carton box printed with our logo

Selling Units

Single item

Single package size

30X25X25 cm

Single gross weight

5.000 kg

Packaging examples

Supply capacity

Supply Ability

10000000 pieces per Month silicone o ring rubber seal

Specification

Custom silicone ring

1.rubber material: silicone SIL VMQ…

2. size: standards or as per yours

3.Duro: 30-80 Shore A

temperature silicone o-rings cs3 mm rubber ring for glasses chain

Product Description

1.Material approved:can be ROHS, REACH, Food grade, etc.

2.We carry top quality small rubber o-ring with a variety of resistant properties such as being oil resistant, alkaline resistant, acid resistant, water resistant, weather proof, and abrasion resistant.

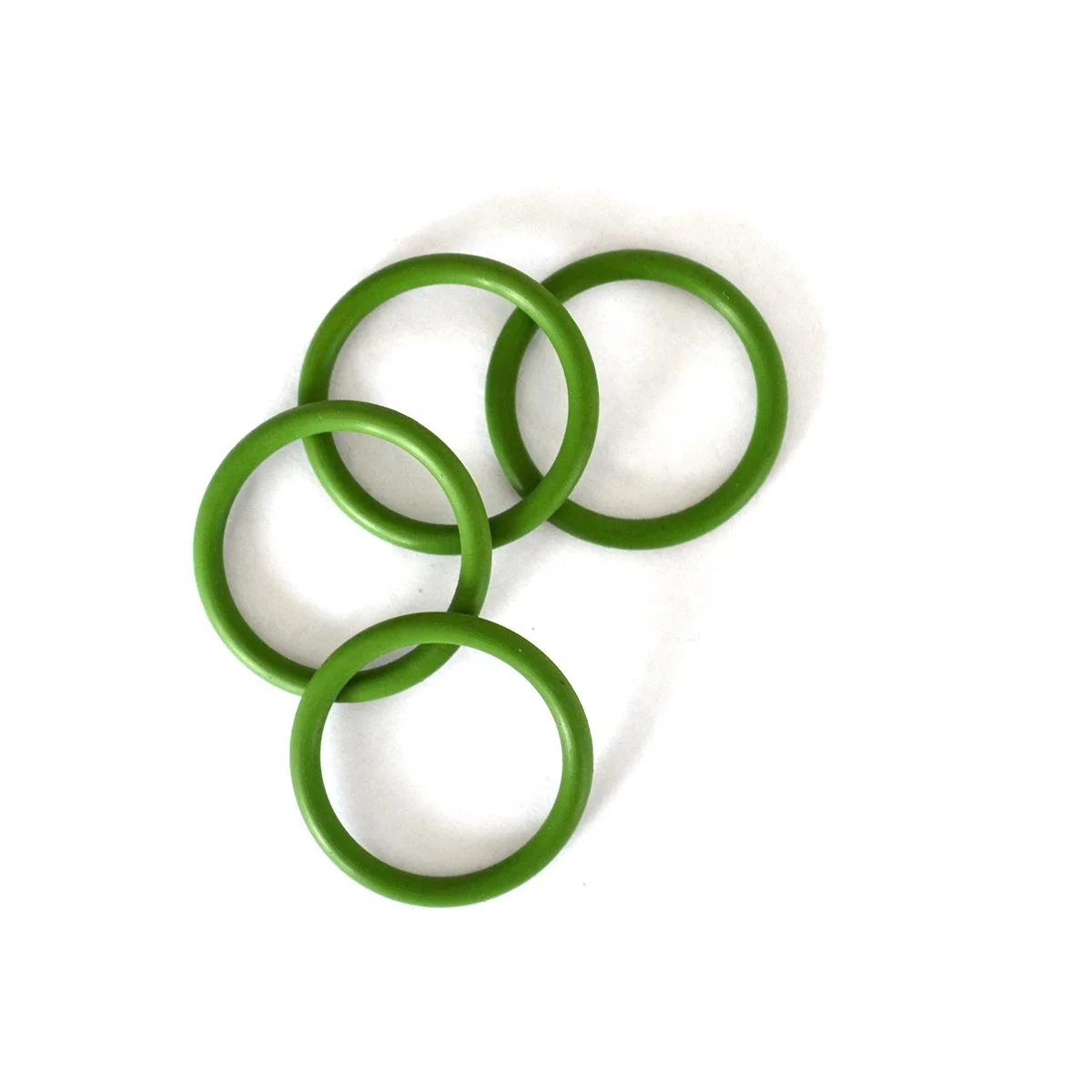

FKM O ring

Abbreviation :FKM

Common Name :Fluoro Elastomers

ASTM D-2000 classification:HK

Military(Mil-Std417) :MIL=R-25897/MIL-R-83248

Chemical Definition :Fluorinated Hydrocarbon

Durometer-Range (Shore A) :60-90

Tensile Range (P.S.I) :500-2000

Elongation (Max.%) :300

Compression Set:Good

Resilience-Rebound:Fair

Abrasion Resistance:Good

Tear Resistance:Good

Solvent Resistance:Excellent

Oil Resistance:Excellent

Low Temperature Usage (°F:+10° to -40°

High Temperature Usage (°F) :250° to 300° (depending on time and service condition)

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Good

Advantage:

1. Heat resistance up to 600°F

2. Resistance to wide range of oils and solvents; specially all aliphatic, aromatic and halogenated

hydrocarbons, acids, animal and vegetable oils.

Disadvantage:

1. Not recommended for ketones, low molecular weight esters and nitro containing compounds.

Usage:

Automobile,motorcycle,diesel engine,and fuel system

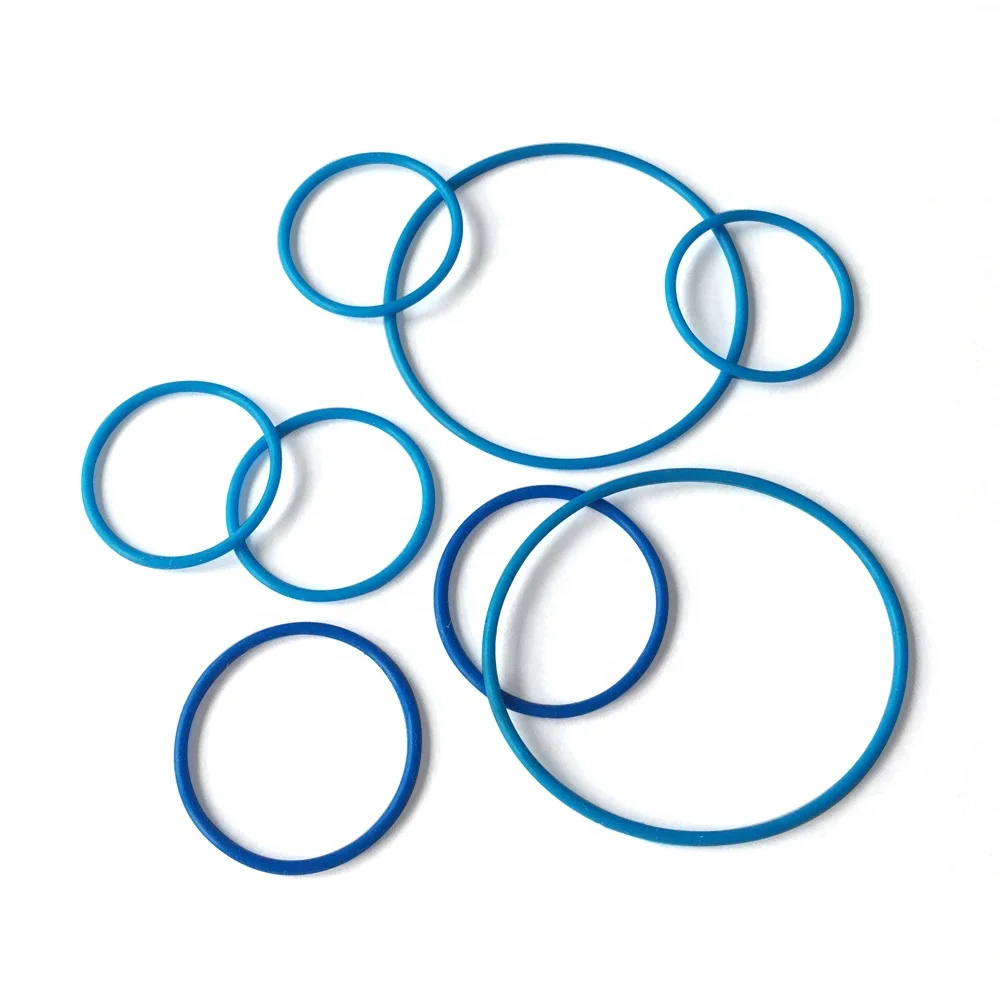

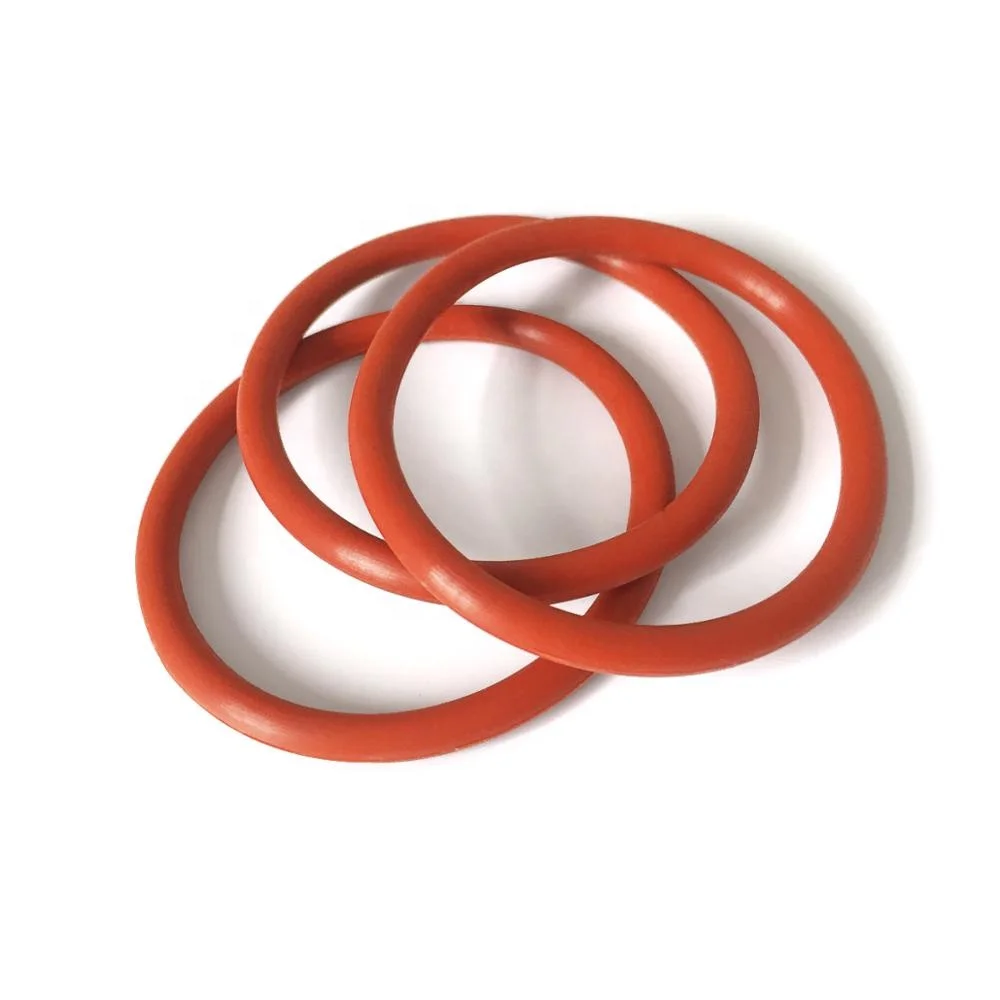

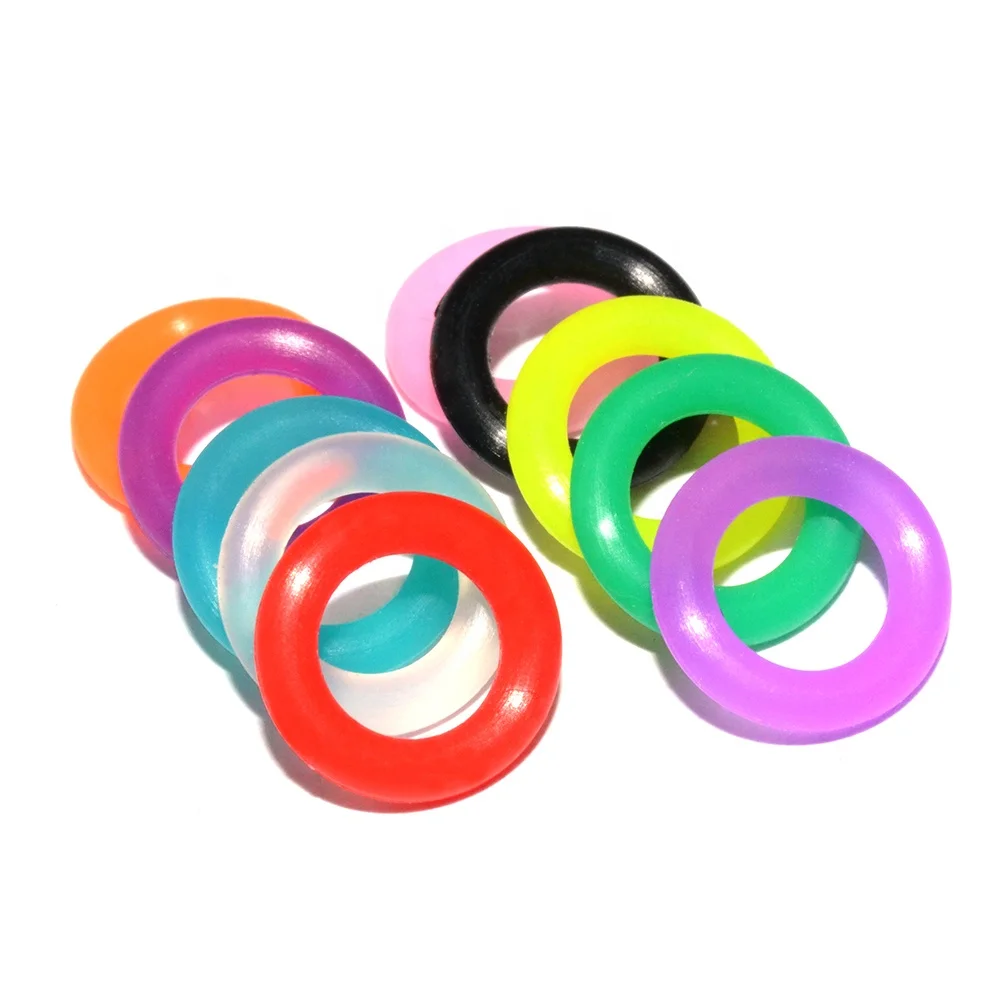

Silicone O ring

Abbreviation :silicone (SIL)

ASTM D-2000 classification:FC,FE,CE

Military(Mil-Std417) :TA

Chemical Definition :polysiloxane

Durometer-Range (Shore A) :30-90

Tensile Range (P.S.I) :200-1500

Elongation (Max.%) :700

Compression Set:Good

Resilience- Rebound:Good

Abrasion Resistance:Fair to poor

Tear Resistance:poor

Solvent Resistance:poor

Oil Resistance:Fair to poor

Low Temperature Usage (°F:-60° to -150°

High Temperature Usage (°F) :450°

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Good

Advantage:

1.after modulating formula, the tensile strength up to 1500 psi, and tear resistance up to 88 LBS.

2.Good elasticity and good compression deformation.

3.good resistance to neutral solvent.

4.excellent heat resistance.

5.With excellent cold resistance.

6.with excellent resistance to erosion of ozone and oxides .

Disadvantage:

1.Does not recommend is suitable for most concentrated solvent, oil, concentrated acid after dilute sodium

hydroxide

Usage:

Appliance:electric kettle,electric iron,Microwave owen,etc

v various size silicone rubber o ring with high qual

NBR O ring

Abbreviation: NBR

Common Name:Buna N, Nitrile, NBR

Chemical Definition:Butadiene Acrylonitrile

General Characteristics:Waterproof,oilproof

Durometer-Range (Shore A):20-95

Tensile Range (P.S.I):200-3000

Elongation (Max.%):600

Compression Set:Good

Resilience-Rebound:Good

Abrasion Resistance:Excellent

Tear Resistance:Good

Solvent Resistance:Good to Excellent

Oil Resistance:Good to Excellent

Low Temperature Usage (°F):-30° to - 40°

High Temperature Usage (°F):to 250°

Aging Weather-Sunlight:Poor

Adhesion To Metals:Good to Excellent

Usual Hardness range:50-90 shore A

Advantage:

1. Has good solvent, oil, water and hydraulic fluid resistance.

2. Good compression set, abrasion resistance and tensile strength.

Disadvantage:

1. Not recommended for using in highly polar solvents such as acetone, and MEK, ozone, chlorinated

hydrocarbons and nitro hydrocarbons.

Usage: fuel tank, grease-box, hydraulic, gasoline, water, silicone oil, etc

EPDM O ring

Abbreviation:EPDM

Common Name:EPR, EPT, EPDM

ASTM D-2000 classification:CA

Military(Mil-Std417) :RS

Chemical Definition:Ethylene Propylene

Durometer-Range (Shore A) :30-90

Tensile Range (P.S.I) :500-2500

Elongation (Max.%) :600

Compression Set :Good

Resilience-Rebound :Good

Abrasion Resistance:Good

Tear Resistance:Fair

Solvent Resistance:Poor

Oil Resistance:Poor

Low Temperature Usage (°F) :-20° to 60°

High Temperature Usage (°F):to 350°

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Fair to Good

Usual Hardness range:50-90 shore A

Usage: Sanitary ware; brake; radiator

Applied industry:

silicone o ring seals/gaskets are extensively used in chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on.

Applied equipment:

mechanical sealing, pressure vessel, gas compressor, reaction vessel, heatexchanger, boiler, filter and so on.

Packaging & Shipping

MOQ	200 PCS temperature silicone o-rings cs3 mm rubber ring for glasses chain
Packing	Plastic Bags inside, Carton Boxes outside . Customized packing is welcome.
Date of Delivery	1) 5-7 days if goods in stock 2) 10-20 days if goods out of stock with molding 3) 25-35 days if goods out of stock without molding 4) Store, Prompt shipment if annual requirement informed
Port of Loading	Xingang port
Terms of Shipping	By Express,Air,Sea etc.
Terms of Payment	PayPal, Western Union,T/T in advance, L/C at sight, etc.

Our Services

temperature silicone o-rings cs3 mm rubber ring for glasses chain

1) We have free silicone o ring sample available.

2) If you want to make an OEM sample, please contact with us.

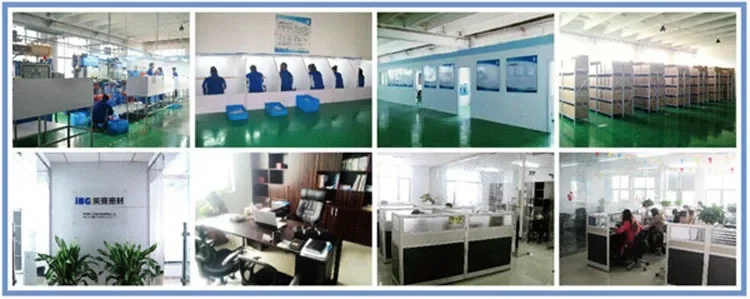

Company Information

temperature silicone o-rings cs3 mm rubber ring for glasses chain

Shijiazhuang Beike Sealing Technology Co., Ltd, specialized in rubber sealing field. Main products: rubber o-ring, NBR o rings, HNBR o rings, seal lid for coffee mug , rubber lid , rubber gakset/washer, rubber stopper, rubber sleeve, and various of sealing rings. We provide OEM parts for many auto accessory manufactures. Main market: USA, GERMANY, JANPAN, RUSSIA AND many other countries and regions.

1. Established in 2007;

2. More than 20,000 o ring molds;

3. Mass stock;

4. TS16949

Link 4

More Products

FAQ

1.Why choose you?

we have professional team of workers,service and inspection.

2.How about the price?

we specialized in customizing high-quality items for you and meet your demand at reasonable price.

3.How about delivery?

help to choose the cheapest and best transportation way for you.

4.How about after-sale service?

we reply your enquiry within 12 hours

5.How to contact us?

You are welcome to visit our website:

http://becksealing.en.alibaba.com

http://www.ibgchina.com
