Y Shape Fluorocarbon Seals FKM O Rings in Stock

Banner PDF Get A Quote

Home
Products
Hydraulic and Pneumatic seals
Y Ring
Y Shape Fluorocarbon Seals FKM O Rings in Stock

Y Shape Fluorocarbon Seals FKM O Rings in Stock

Key attributes

Processing Service

Moulding

Place of Origin

Hebei, China

Product

Y shape Fluorocarbon seals FKM O Rings in stock

Size

GB1235-76 AS568 JIS2401 or as per yours

Material

FKM,Silicone,EPDM,NBR,HNBR,NR,FFKM, etc

Duro

60-90 Shore A

Color

Black,White,Brown,etc

Temperature

200degree

Sample

free sample

Shipping

1.Small quantity,DHL/TNT/EMS 2.Large quantity ,sea/air freight

Packing

pp bag inside,carton box outside

Packaging and delivery

Selling Units

Single item

Single package size

5X5X1 cm

Single gross weight

0.500 kg

Specification

FKM O Rings

1.rubber material: FKM , Fluorocarbon

2. size: standards or as per yours

3.Duro: 30-90 Shore A

Y shape Fluorocarbon seals FKM O Rings in stock

Product Description

1.Material approved:can be ROHS, REACH, food gradfe, etc.

2.We carry top quality FKM O Rings washers/gaskets with a variety of resistant properties such as being oil resistant, alkaline resistant, acid resistant, water resistant, weather proof, and abrasion resistant.

FKM O ring

Abbreviation :FKM

Common Name :Fluoro Elastomers

ASTM D-2000 classification:HK

Military(Mil-Std417) :MIL=R-25897/MIL-R-83248

Chemical Definition :Fluorinated Hydrocarbon

Durometer-Range (Shore A) :60-90

Tensile Range (P.S.I) :500-2000

Elongation (Max.%) :300

Compression Set:Good

Resilience-Rebound:Fair

Abrasion Resistance:Good

Tear Resistance:Good

Solvent Resistance:Excellent

Oil Resistance:Excellent

Low Temperature Usage (°F:+10° to -40°

High Temperature Usage (°F) :250° to 300° (depending on time and service condition)

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Good

Advantage:

1. Heat resistance up to 600°F

2. Resistance to wide range of oils and solvents; specially all aliphatic, aromatic and halogenated

hydrocarbons, acids, animal and vegetable oils.

Disadvantage:

1. Not recommended for ketones, low molecular weight esters and nitro containing compounds.

Usage:

Automobile,motorcycle,diesel engine,and fuel system

Silicone O ring

Abbreviation :silicone (SIL)

ASTM D-2000 classification:FC,FE,CE

Military(Mil-Std417) :TA

Chemical Definition :polysiloxane

Durometer-Range (Shore A) :30-90

Tensile Range (P.S.I) :200-1500

Elongation (Max.%) :700

Compression Set:Good

Resilience- Rebound:Good

Abrasion Resistance:Fair to poor

Tear Resistance:poor

Solvent Resistance:poor

Oil Resistance:Fair to poor

Low Temperature Usage (°F:-60° to -150°

High Temperature Usage (°F) :450°

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Good

Advantage:

1.after modulating formula, the tensile strength up to 1500 psi, and tear resistance up to 88 LBS.

2.Good elasticity and good compression deformation.

3.good resistance to neutral solvent.

4.excellent heat resistance.

5.With excellent cold resistance.

6.with excellent resistance to erosion of ozone and oxides .

Disadvantage:

1.Does not recommend is suitable for most concentrated solvent, oil, concentrated acid after dilute sodium

hydroxide

Usage:

Appliance:electric kettle,electric iron,Microwave owen,etc

v various size silicone rubber o ring with high qual

NBR O ring

Abbreviation: NBR

Common Name:Buna N, Nitrile, NBR

Chemical Definition:Butadiene Acrylonitrile

General Characteristics:Waterproof,oilproof

Durometer-Range (Shore A):20-95

Tensile Range (P.S.I):200-3000

Elongation (Max.%):600

Compression Set:Good

Resilience-Rebound:Good

Abrasion Resistance:Excellent

Tear Resistance:Good

Solvent Resistance:Good to Excellent

Oil Resistance:Good to Excellent

Low Temperature Usage (°F):-30° to - 40°

High Temperature Usage (°F):to 250°

Aging Weather-Sunlight:Poor

Adhesion To Metals:Good to Excellent

Usual Hardness range:50-90 shore A

Advantage:

1. Has good solvent, oil, water and hydraulic fluid resistance.

2. Good compression set, abrasion resistance and tensile strength.

Disadvantage:

1. Not recommended for using in highly polar solvents such as acetone, and MEK, ozone, chlorinated

hydrocarbons and nitro hydrocarbons.

Usage: fuel tank, grease-box, hydraulic, gasoline, water, silicone oil, etc

EPDM O ring

Abbreviation:EPDM

Common Name:EPR, EPT, EPDM

ASTM D-2000 classification:CA

Military(Mil-Std417) :RS

Chemical Definition:Ethylene Propylene

Durometer-Range (Shore A) :30-90

Tensile Range (P.S.I) :500-2500

Elongation (Max.%) :600

Compression Set :Good

Resilience-Rebound :Good

Abrasion Resistance:Good

Tear Resistance:Fair

Solvent Resistance:Poor

Oil Resistance:Poor

Low Temperature Usage (°F) :-20° to 60°

High Temperature Usage (°F):to 350°

Aging Weather- Sunlight:Excellent

Adhesion To Metals:Fair to Good

Usual Hardness range:50-90 shore A

Usage: Sanitary ware; brake; radiator

Applied industry:

FKM O Rings washers/gaskets are extensively used in chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on.

Applied equipment:

mechanical sealing, pressure vessel, gas compressor, reaction vessel, heatexchanger, boiler, filter and so on.

Packaging & Shipping

MOQ	200 PCS Y shape Fluorocarbon FKM seals FKM O Rings
Packing	Plastic Bags inside, Carton Boxes outside . Customized packing is welcome.
Date of Delivery	1) 5-7 days if goods in stock 2) 10-20 days if goods out of stock with molding 3) 25-35 days if goods out of stock without molding 4) Store, Prompt shipment if annual requirement informed
Port of Loading	Xingang port
Terms of Shipping	By Express,Air,Sea etc.
Terms of Payment	PayPal, Western Union,T/T in advance, L/C at sight, etc.

Our Services

Y shape Fluorocarbon FKM seals FKM O Rings in stock

1) We have free rubber o-ring washers/gaskets for pvc pipe sample available.

2) If you want to make an OEM sample, please contact with us.

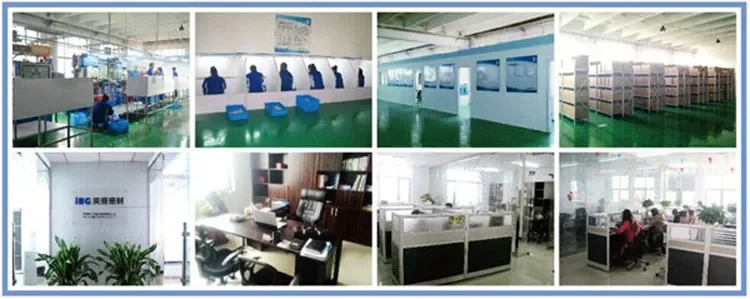

Company Information

Y shape Fluorocarbon FKM seals FKM O Rings in stock

Shijiazhuang Beike Sealing Technology Co., Ltd, specialized in rubber sealing field. Main products: rubber o-ring flat washers/gaskets, NBR o rings, HNBR o rings, seal lid for coffee mug , rubber lid , rubber gakset/washer, rubber stopper, rubber sleeve, and various of sealing rings. We provide OEM parts for many auto accessory manufactures. Main market: USA, GERMANY, JANPAN, RUSSIA AND many other countries and regions.

1. Established in 2007;

2. More than 20,000 o ring molds;

3. Mass stock;

4. TS16949

Link 4

More Products

FAQ

1.Why choose you?

we have professional team of workers,service and inspection.

2.How about the price?

we specialized in customizing high-quality items for you and meet your demand at reasonable price.

3.How about delivery?

help to choose the cheapest and best transportation way for you.

4.How about after-sale service?

we reply your enquiry within 12 hours

5.How to contact us?

You are welcome to visit our website:

http://becksealing.en.alibaba.com

http://www.ibgchina.com

Any requirement of FKM O Rings washers/gaskets,please feel free to contact us!
